Applicable media
Water Gas Oil
Working pressure
1000PSI/PN63
Applicable temperature
-20℃--220℃

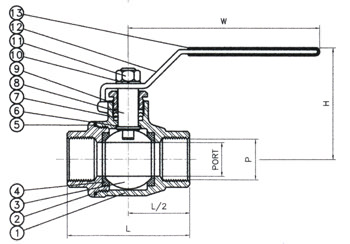

MATERIALS LIST
No.
DESCRIPTION
SPECIFICATION
1.
BODY
1.4408 / CF8M
2.
END CAP
1.4408 / CF8M
3.
BALL
SS316
4.
SEAT RING
PTFE
5.
BODY SEAL
PTFE
6.
THRUST WASHER
PTFE
7.
STEM SEAL
PTFE
8.
STEM
SS316
9.
GLAND NUT
SS304
10.
HANDLE WASHER
SS304
11.
HANDLE NUT
SS304
12.
HANDLE
SS304
13.
HANDLE COVER
PLASTIC

DIMENSIONS (MM)
SIZE
PORT
L
H
W
P
1/4"
10
54
45
98
1/4" PIPE THREAD
3/8"
12
54
45
98
3/8" PIPE THREAD
1/2"
16
68
62
125
1/2" PIPE THREAD
3/4"
20
76
65
125
3/4" PIPE THREAD
1"
25
88
83
140
1" PIPE THREAD
1-1/4"
32
98
89
140
1-1/4"PIPE THREAD
1-1/2"
40
120
100
200
1-1/2" PIPE THREAD
2"
50
134
108
200
2" PIPE THREAD
